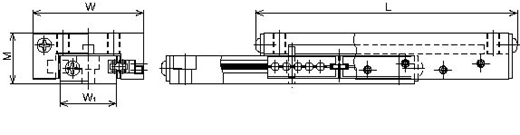

Linear Ball Slide

With Rack Model LSP

LSP

Model No. Slider dimensions Base dimensions Basic load rating
Max. Stroke Height Width Length Width Dynamic rating Static rating
ls M W L W1 C C0
±0.25 ±0.25
mm mm mm mm mm N N
LSP 1340 15 13 25 42 12.2 68.6 118
LSP 1365 25 13 25 67 12.2 118 206
LSP 1390 50 13 25 92 12.2 157 275
LSP 2050 25 20 44 53 22.3 157 284
LSP 2080 50 20 44 83 22.3 304 559
LSP 20100 75 20 44 103 22.3 392 706
LSP 25100 50 25 66 103.8 38 588 1069
LSP 25125 75 25 66 128.8 38 735 1333
LSP 25150 100 25 66 153.8 38 882 1598

LSP

Model No. Height Width Length
M W L
±0.25 ±0.25
mm mm mm
LSP 1340 13 25 42
LSP 1365 13 25 67
LSP 1390 13 25 92
LSP 2050 20 44 53
LSP 2080 20 44 83
LSP 20100 20 44 103
LSP 25100 25 66 103.8
LSP 25125 25 66 128.8
LSP 25150 25 66 153.8

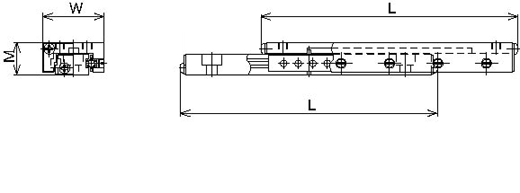

Without Rack Model LS

LS

Model No. Slider dimensions Base dimensions Basic load rating
Max. Stroke Height Width Length Width Dynamic rating Static rating
ls M W L W1 C C0
±0.25 ±0.25
mm mm mm mm mm N N
LS 827 13 8 14.2 28.7 6.2 39.2 68.6
LS 852 25 8 14.2 53.7 6.2 68.6 118
LS 877 50 8 14.2 78.7 6.2 98 167
LS 1027 13 10 19 28.7 9.6 58.8 108
LS 1052 25 10 19 53.7 9.6 108 186
LS 1077 50 10 19 78.7 9.6 157 275

LS

Model No. Height Width Length
M W L
±0.25 ±0.25
mm mm mm
LS 827 8 14.2 28.7
LS 852 8 14.2 53.7
LS 877 8 14.2 78.7
LS 1027 10 19 28.7
LS 1052 10 19 53.7
LS 1077 10 19 78.7

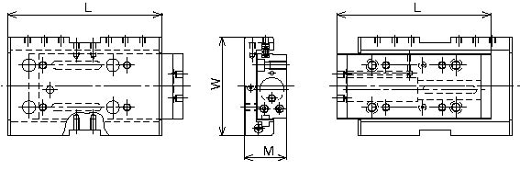

With Rack Model LSC

LSC

Model No. Slider dimensions Base dimensions Basic load rating
Max. Stroke Height Width Length Width Dynamic rating Static rating
ls M W L W1 C C0
±0.25 ±0.25
mm mm mm mm mm N N
LSC 1015 15 25 50 80 31.2 392 676
LSC 1515 15 30 70 80 45 392 676
LSC 1530 30 30 70 110 45 549 951
LSC 1550 50 30 70 150 45 794 1350

LSC

Model No. Height Width Length
M W L
±0.25 ±0.25
mm mm mm
LSC 1015 25 50 80
LSC 1515 30 70 80
LSC 1530 30 70 110
LSC 1550 30 70 150
